When it comes to internet services, Arris is one of the leading telecom brands out there. The company specializes in various network devices, including routers and modems.
If you are an Arris modem user, you must have seen multiple light indicators on the device. These Arris modem lights convey the status of your network connection. They can change colors or blink fast to indicate certain issues.
To understand the meaning of Arris modem lights and how to troubleshoot blinking lights, you should read the post below.
Arris Modem Lights Meaning

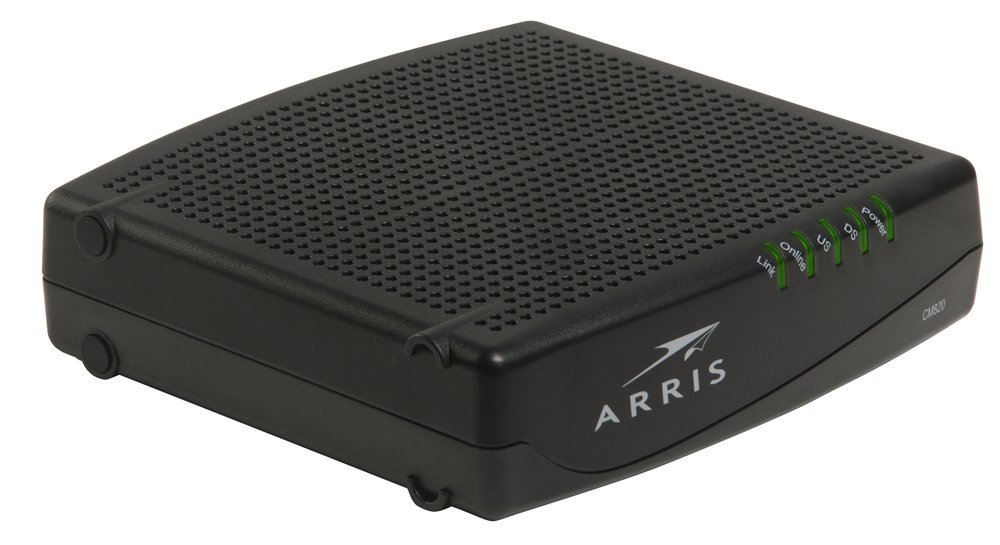

All Arris modems are equipped with light indicators, each with a different meaning. Depending on the model, Arris modem lights can range between 4 to 9 lights. Now the question is what these lights mean.
1. Power
This one is pretty obvious. The power light indicates if the modem is receiving power or not. If the power light is solid green, it means the modem is receiving sufficient power. It also means that the modem is turned on and working. When the power supply is cut, the power indicator will go off.
2. Send
This is also known as Upload Stream or US. The send light on an Arris modem lets you know that the upload stream is working and the device is sending a signal out from your network.
3. Receive
The receive indicator is just the opposite of the send light. It indicates the Download Stream or DS. If the receive light is on, it means your modem is downloading data packets from the internet. The device is working fine and receiving signals.
The color of the received light will change depending on the bandwidth. For example, if the connection is available only for 2.4 Ghz, then the light will appear green. But if the light is blue, it means the connection is there for both 2.4 GHz and 5 GHz.
4. 2.4 GHz/ 5 GHz Light
These Arris modem lights are only available on dual-band models and indicate the channel that is currently in use. The light color is different for 5 Ghz and 2.4 Ghz, so it’s easier for users to know which channel is connected.
5. Online
The online indicator appears solid green. If you notice this light, it means your modem has access to the internet and is ready to use.
6. Phone/Line
This light indicator is available only on some Arris modems. It indicates if the phone connected to your modem is operational or not. Some modems boast Line 1/Line 2 indicators as well.
7. Link
The link light is also not available on all modems. If you see the link light flashing fast, it means the modem is transferring data via your connection.
So now you know what are the lights on my Arris modem? Knowing the meaning of these light indicators will help you understand the status of your modem and if there’s a problem with the connection.
Arris Modem Lights Troubleshooting
Troubleshooting your modem becomes much easier if you know Arris modem lights meaning. Whenever there’s a connection issue, certain lights will either start blinking or change into a different color. This will help you to determine the issue and find a possible solution for it.
To help you understand better, we have explained Arris modem lights meaning in detail.
#1. Power Light Solid Red
Occasionally, you may encounter a situation where the power light on Arris your modem becomes a solid red color. This indicates the loss of internet connectivity.
Several factors can contribute to this problem, such as a faulty power adapter, hardware issues, or a loose power connector. To fix this issue, disconnect the modem from its power source and let it rest for approx. 2 minutes.
After the brief waiting period, reconnect the modem to its power source and see if the problem is solved. In some cases, you may have to restart or hard reset your modem.
#2. Receive Light Blinking
If you own a dual-band modem and see Arris modem lights blinking, it means only one channel is operational.
If the receive light is blinking and the download and upload speed is slow, it indicates that only the 2.4 GHz band is active.
To resolve this issue, you should try to restart your modem. Doing so will refresh its settings and functionality. Also, check all the connections associated with the modem to ensure they are properly connected.
Access the admin settings of your modem and confirm that none of the bands have been accidentally disabled. Enable any disabled bands if necessary.
By performing these actions, you should be able to resolve the issue.
#3. Power Light Flashing Green
Arris modem lights blinking green means the modem is booting up. In this case, you just have to wait until the process gets over.
However, the issue rises if the green light continues to blink without stopping. If you face anything similar, consider unplugging your modem from the power supply and re-plug it.
#4. Online Light Blinking
When the online light on your modem starts flashing green, it indicates that the device is attempting to establish a connection.
However, if the online light blinks yellow or turns solid red, it signifies an unsuccessful connection. In such cases, it is necessary to seek further assistance from your ISP.
We will suggest you reach out to your ISP by contacting their customer support and explaining the situation with your modem. They will be able to provide the necessary guidance and support to resolve the connectivity issue.
#5. Send Light Blinking
If you are using a dual-band connection and your modem’s send light starts blinking green, it indicates that the upload connection is functioning on a single channel.
Typically, it means that the 2.4GHz band is active. It offers slower upload speeds than the 5 Ghz band.
Now that you know what are the lights on my Arris modem, we can move on to the part where we will learn how to troubleshoot Arris modem issues.
Tips To Troubleshoot Arris Modem
In this section, we will outline various issues resulting from poor internet connection. If you experience any of these issues with your modem, you can apply the solutions to resolve the problem.
1. Check All Connections
Make sure that the Ethernet cables, coaxial cables, and USB are connected properly to the modem. Loose connections can create internet issues.
2. Replace Splitters
When there are multiple wired devices connected to the modem, you need splitters. However, if you encounter connectivity issues with only one device while all others are functioning properly, then you know there’s a problem. In this case, you should directly plug in the device that is connected through a splitter.
By using WiFi, you can reduce the need for splitters. By reducing the number of wired connections you can improve the overall connectivity of your modem.
3. Check For Internet Outage
Occasionally, ISPs may encounter network issues or engage in scheduled maintenance. In this case, you cannot do much, except be patient.
Internet outages can also occur due to unstable local networks or extreme weather conditions, resulting in connectivity issues with your modem.
If you are aware that there is an ongoing internet outage, you will need to wait for your ISP to fix it.
To safeguard your electronic equipment from power surges during outages, you should use power strips. It will protect your devices during such events.
4. Perform A Soft Reset
Performing a soft reset involves restarting your Arris modem. For this, you need to unplug your modem and wait for 30 seconds before plugging it back in.
It is recommended to conduct a soft reset once you have verified the status of your connection cables, such as coaxial cables, and Ethernet cables.
5. Hard Reset Your Modem
While it is generally not advisable to hard reset your modem, in some cases, it becomes necessary. However, it should only be performed if you have the approval of your ISP.
A hard reset will restore your Arris modem to its factory settings. It will delete all saved connection data such as passwords, WiFi names, and recognized devices.
To initiate a hard reset, locate the small “reset” button on the back of your modem and press it using a paperclip or similar tool.
Final Words
So now you know the different Arris modem lights and their meaning. If you notice the light indicators acting up, it means there’s a connectivity issue or the modem is not working properly. In such a situation you can contact your ISP or try to fix the issue yourself.
FAQ on Arris modem lights
Q1. What do the different lights on an Arris modem indicate?
Ans: The lights on an Arris modem indicate various status and functionality information related to the modem’s operations.
Q2. What does the DS (Downstream) light on an Arris modem mean?
Ans: The DS light on an Arris modem shows the status of the downstream connection. It should be solid green to indicate a good connection.
Q3. What does the Online light on an Arris modem mean?
Ans: The Online light on an Arris modem shows the status of the modem’s connection to the ISP.
Q4. What does the power light on an Arris modem signify?
Ans: The power light on an Arris modem indicates whether the modem is receiving power and is turned on. A solid green light indicates normal operation.
Q5. What does the Wi-Fi light on an Arris modem indicate?
Ans: The WiFi light on an Arris modem represents the status of the wireless network.
